FRACTIONAL RF MICRO-NEEDLE
INTRODUCING
ASHLEY

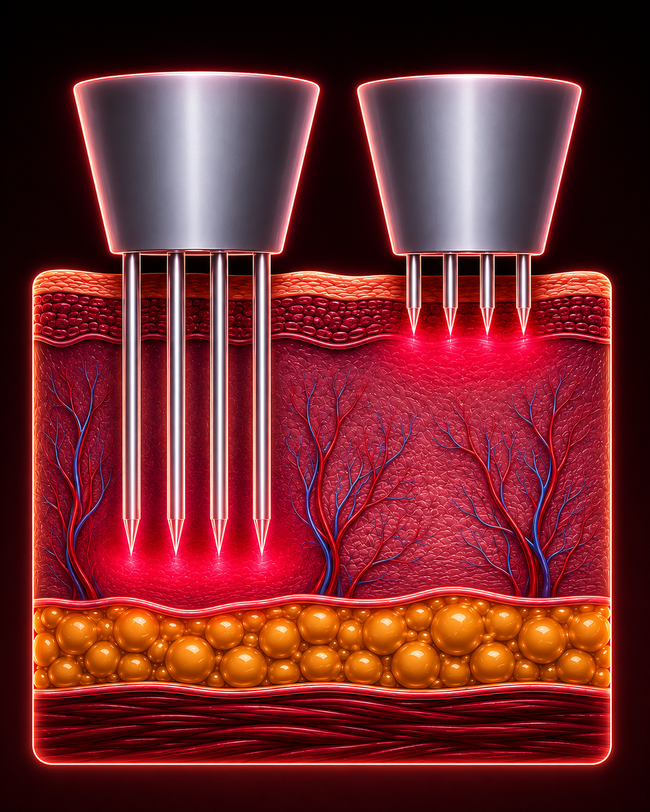

ASHLEY is an advanced fractional radiofrequency microneedling system designed to address the limitations of conventional laser treatments. Utilizing insulated micro-needles, it delivers RF energy directly into the dermis while minimizing impact on the skin’s surface, allowing for precise and controlled treatment.
By creating targeted coagulation zones within the skin, ASHLEY stimulates the natural healing process and promotes collagen production. Its controlled energy delivery ensures consistent treatment performance, helping practitioners achieve reliable and effective clinical results.
APPLICATIONS
Procedures
- Wrinkles
- Enlarged Pores
- Scars
- Skin Laxity
- Turkey Neck
- Striae Distensae
Discoloration
- Dyschromia
- Hyperpigmentation
Sweating Disorder
- Hyperhidrosis
- Axillary Osmidrosis
KEY FEATURES

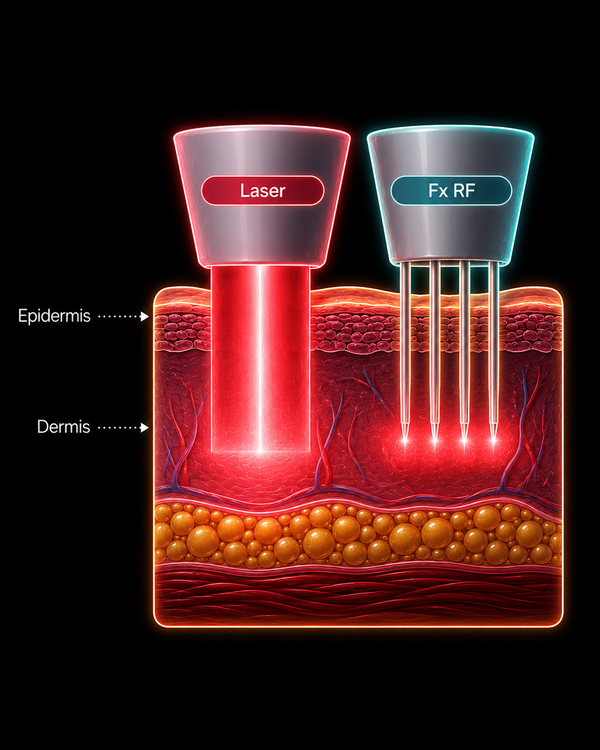

NO OR MINIMIZED SKIN SURFACE DAMAGE
Traditional laser treatments deliver energy through the skin’s surface, which can sometimes lead to unwanted thermal effects on the epidermis. In contrast, ASHLEY utilizes insulated micro-needles to deliver radiofrequency energy directly into the dermis, enabling precise treatment while minimizing impact on the skin’s surface.

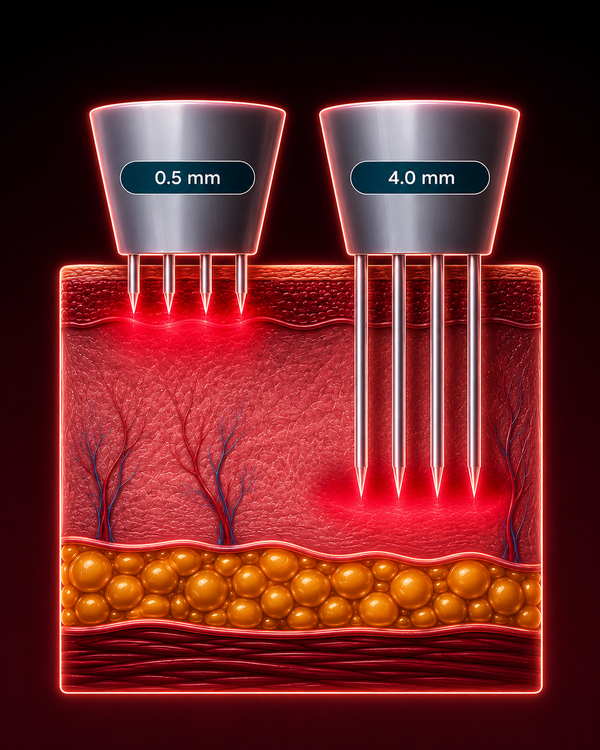

CONTROLLABLE DEPTH FROM 0.5 TO 4.0 mm
ASHLEY allows practitioners to customize treatment depth according to the targeted skin layer. Using the intuitive user interface, needle penetration can be precisely adjusted from 0.5 mm to 4.0 mm, enabling tailored treatments for a variety of skin concerns and indications.

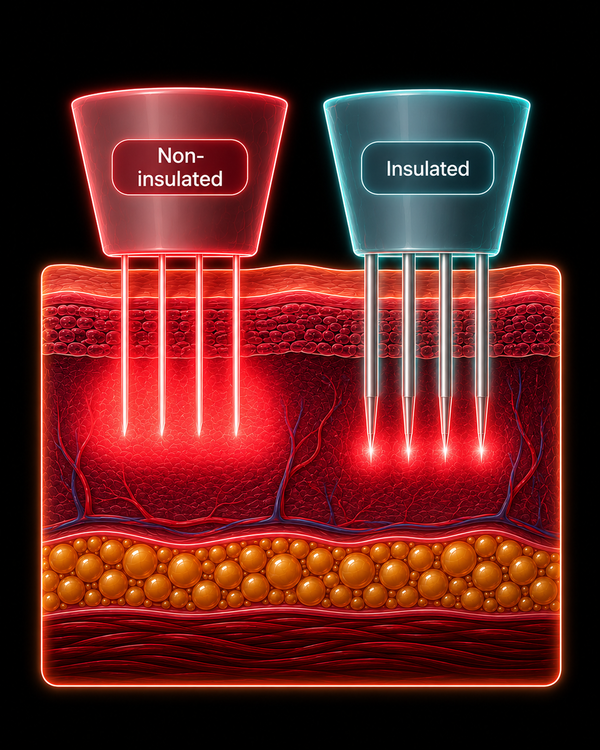

TECHNOLOGY & SKIN REACTION
- INSULATED NEEDLES: Insulated needles are often preferred when the focus is on minimizing surface damage and precisely controlling the depth of penetration for specific skin concerns.
- NON-INSULATED NEEDLES: Non-insulated needles may be chosen for treatments where a more widespread impact and coagulation are desired, even at the expense of some superficial damage.
TECHNICAL SPECIFICATIONS
| Power | 40 W |
| Depth Level | 0.5 - 4.0 mm |
| Repeat Time | 0.5 - 3.0 ms, OFF |
| Repetition Rate | 1 MHz / 2 MHz |
| Output Level |
Single Shot: Level 1 to 50 Double Shot: Level 1 to 100 |
| Operation Mode | Auto / Manual |
| Needle Tips |
ANI-36 (36-pin): Ablative needle, insulated ANT-36 (36-pin): Non-ablative needle, not insulated ANN-36 (36-pin): Ablative needle, not insulated Others (49-pin): Ablative needle, insulated |
| Operation Area | 15 mm × 15 mm |
| Electrical Requirements | 100–240 VAC, 50/60 Hz |
| Dimension (W × L × H) | 380 mm (W) × 440 mm (L) × 1150 mm (H) |
| Weight | 22 Kg |
BEFORE & AFTER
