DIODE LASER
INTRODUCING

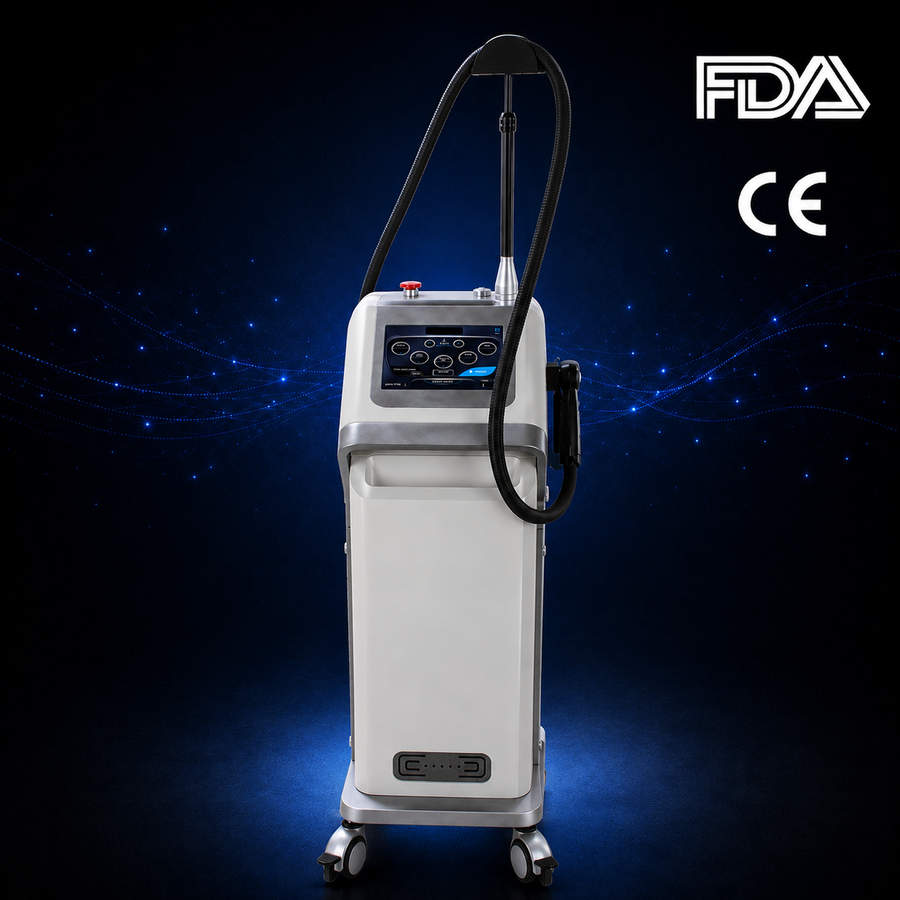

HRZ-6000
HRZ-6000 is an advanced diode laser platform engineered for fast and effective hair removal across all body areas and suitable for various hair types.
The system operates at 755 nm, 810 nm, or a triple-wavelength combination of 755 nm, 810 nm, and 1064 nm, allowing treatments to be tailored to different skin and hair characteristics.
Designed for both power and precision, HRZ-6000 delivers controlled energy directly to the target area for highly efficient hair reduction. In addition, its advanced skin cooling technology ensures a comfortable, virtually painless experience for patients while helping practitioners perform treatments more efficiently and in less time.
APPLICATIONS
HAIR REMOVAL
Arm
Beard
Chest
Axilla
Groin
Leg
Others
KEY FEATURES
3 WAVELENGTHS

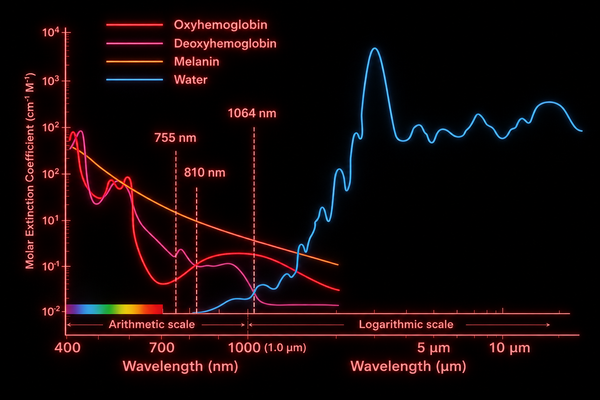

The 755 nm, 810 nm, and 1064 nm wavelengths are widely regarded as some of the safest and most effective choices for laser hair removal. Their high affinity for melanin allows them to efficiently target and remove both coarse and fine hair while preserving the surrounding skin. This versatility makes them suitable for a wide range of skin types, including darker skin tones, delivering excellent clinical outcomes with minimal discomfort and a significantly reduced risk of skin irritation or burns.
3 PULSE TYPES
HRZ-6000 offers multiple pulse modes, including short, long, and combi pulses, providing the flexibility to customize treatments according to different hair and skin types for optimal clinical results.
In addition, all pulse modes can be used at high repetition rates of up to 15 Hz, enabling efficient energy delivery and gradual heat accumulation within the hair follicle. This approach ensures effective hair removal while maintaining patient comfort and minimizing treatment-related discomfort
HIGH POWER WITH SHORTER PULSE DURATION
When the fluence level remains the same between two laser devices, increasing power can only be achieved by shortening the pulse duration.
The HRZ-6000 features a significantly shorter pulse duration than many conventional systems, enabling it to deliver higher peak power more efficiently. This enhanced power output improves the effectiveness of treatments, leading to better clinical outcomes while also reducing treatment time and minimizing patient discomfort.
TECHNICAL SPECIFICATIONS
| Laser Type | Diode Laser |
| Wavelength | 755 nm, 810 nm, combined 3 wavelengths (755 nm, 810 nm, 1064 nm) |
| Laser Power | 100 J/cm² |
| Treatment Areas | Arm / Beard / Chest / Axilla / Groin / Leg |
| Shot Speed | 1–15 Hz |
| Pulse Duration | 5–800 ms |
| Beam Shape | Square |
| Beam Size | 11 × 15 mm |
| Light Conduction | Crystal coupling |
| Cooling Tip Temperature | 1°C |
| Electrical Requirements | 230 V, single phase, 50/60 Hz |
| Dimension (W × L × H) | 360 mm (W) × 610 mm (L) × 1000 mm (H) |
BEFORE & AFTER
