FRACTIONAL CO2 LASER
INTRODUCING
MICROSYS PLUS

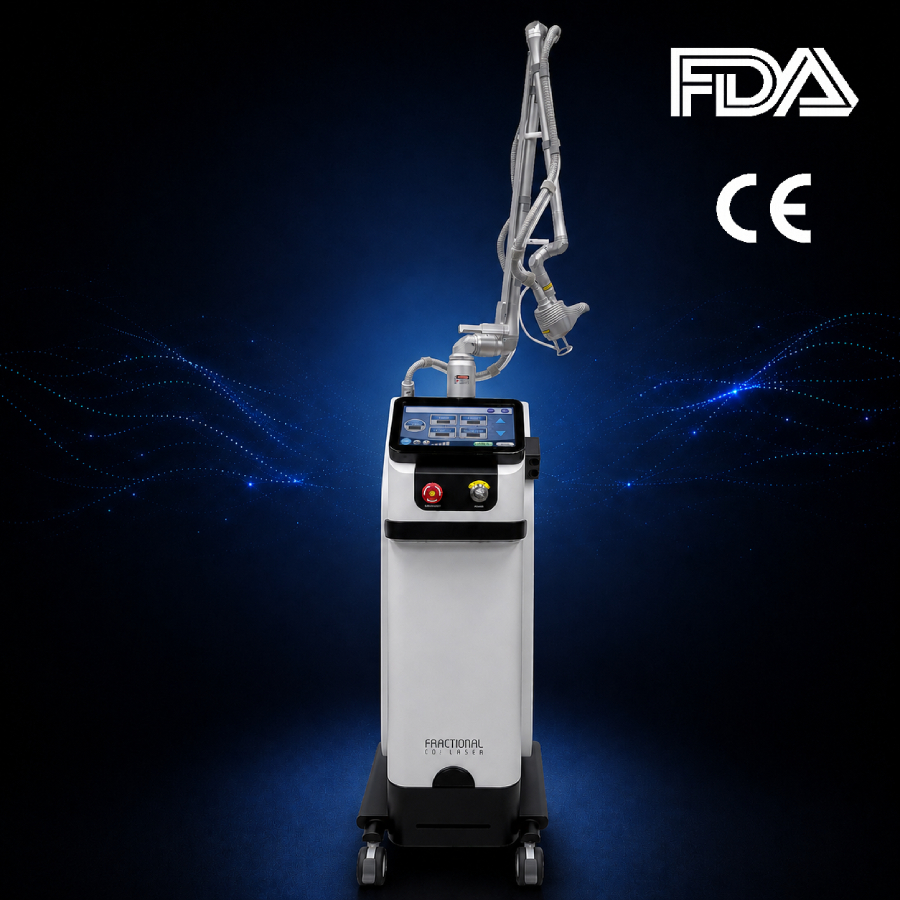

MICROSYS PLUS is a fractional CO2 laser setting new standards across diverse medical applications. With cutting-edge innovation and meticulous engineering, it stands as a game-changer in 6 key areas—comprising aesthetic surgical, aesthetic fractional, general fractional, vaginal, dental, and ENT applications.
Tailored features for each application ensure that MICROSYS PLUS optimizes treatment outcomes, showcasing unparalleled efficacy and versatility. Its unique strength lies in the ability to minimize downtime while maximizing results, making MICROSYS PLUS the preferred choice for both aesthetic and medical practitioners seeking advanced and reliable solutions.
APPLICATIONS
Procedures
- Corn, Warts
- Syringoma
- Acne Scar, Wrinkle, Large Pore
- Skin Resurfacing / Tightening
- Laser Peeling, Age Spots
- Tumor Elimination
- Hemorrhoids
- Excision, Incision
Vaginal
- Pudenda
- Genitourinary Syndrome of Menopause
- Vaginal Rejuvenation
- Viginal Atrophy
- Stress Urinary Incontinence
Dental & ENT
- Implants Operation
- Hypersensitivity, Hemostasis
- Sterilization In Root Canal
- Allergic Rhinitis, Snoring
KEY FEATURES
SCAR TREATMENT BY FRACTIONAL CO2

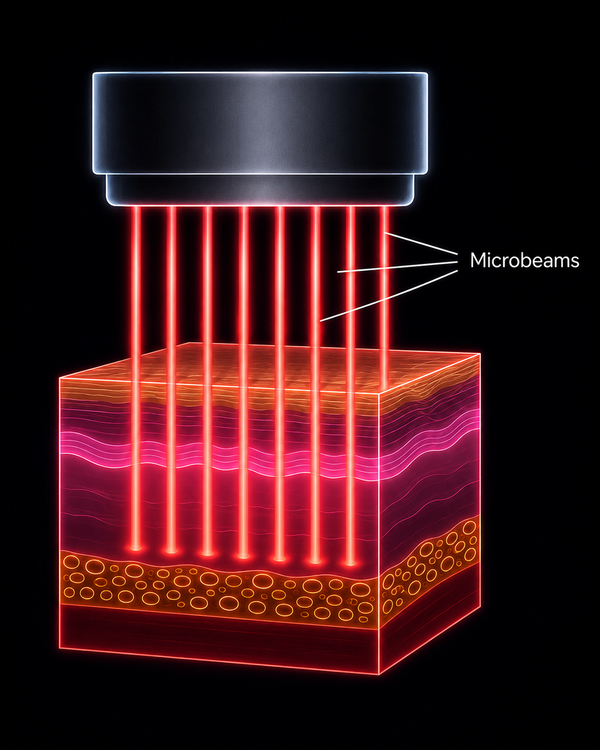

The fractional CO2 laser emits a concentrated beam of light divided into thousands of tiny microbeams. These penetrate deep into the skin, creating controlled vaporized and coagulated columns that stimulate new collagen and elastin production. As damaged skin cells are replaced with healthier tissue, the appearance of scars gradually improves over time.

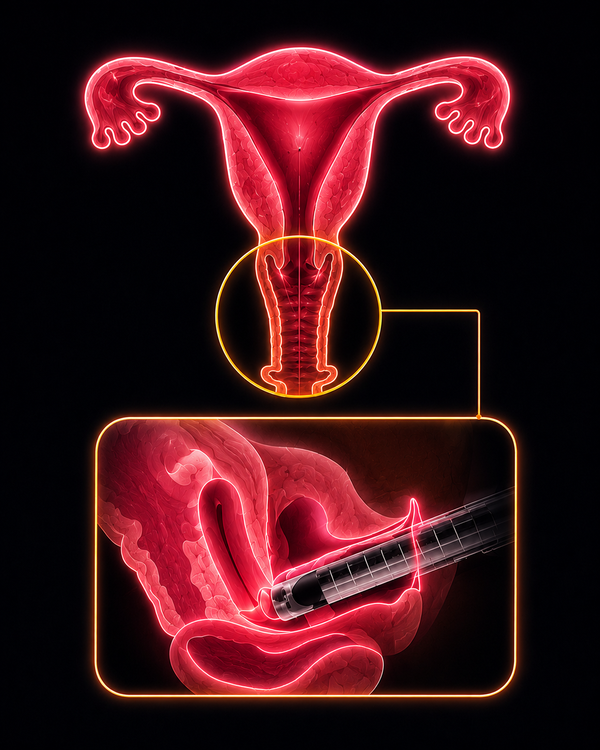

VAGINAL REJUVENATION BY FRACTIONAL CO2
Similar to scar treatment, fractional CO2 laser vaginal rejuvenation uses targeted microbeams that penetrate vaginal tissue, creating controlled vaporized and coagulated columns. This stimulates the production of new collagen, elastin fibers, and blood vessels, promoting tissue regeneration. As the tissue heals, vaginal strength, elasticity, and moisture levels improve, leading to enhanced tightness, lubrication, and overall vaginal health over the following weeks.
TECHNICAL SPECIFICATIONS
| Laser Medium | CO₂ (RF Tube) |
| Wavelength | 10,600 nm |
| Guide Beam | 650 nm < 5 mW |
| Power | 1–60 W |
| Aiming Beam | Diode 650 nm |
| Cooling | Air |
| Dimension (W×L×H) | 400 × 390 × 1000 mm |
| Weight | 50 Kg |
| Handpieces |
50 mm / 100 mm (Standard) Dental / ENT (Optional) |
| Operation Mode |
CW / Normal Pulse / Super Pulse Super Pulse Continuous / Ultra Pulse Smart Protocol (General Surgery / Dental Surgery) |
| Pulse Duration |
Continuous: 2–30 ms Ultra Pulse: 90–900 μs Super Pulse: 1.0–3.5 ms Normal Pulse: 4–20 ms |
| Repeat Time |
Off, 2/500 ms adjustable, 5, 10, 30, 50, 70, 100, 250, 500 ms |
| Beam Mode | Ultra Pulse |
| Density Level | 1–23 Steps (x, y, line); 9–4489 dots |
| Operation Mode |
Fractional Mode Low Pain Fractional Mode |
| Beam Pattern | Array, Grid, Random |
| Beam Size | 2×2 – 20×20 mm |
| Beam Shape | Square, Triangle, Octagon, Circle |
| Depth Level | 1–5 Steps |
| Handpiece |
Fractional HP (Galvanic Motor) Vaginal Rejuvenation HP (Optional) |
| Repeat Time | Off, 0.5, 1, 1.5, 2, 2.5 ms |
BEFORE & AFTER
